Featuring full RS-232 bidirectional communication, DS Vision 3000 gives you the ability to remotely query screen operation time - essential for monitoring the remaining life of your screens and a valuable precursor to measuring advertising effectiveness.

The system also enables power commands that turn either the entire screen network or screen groups on/off. Screen wear and tear is thus minimized while maximizing the life of your digital signage network.

DS Vision 3000's serial function facilitates screen power on/off, and bi-directional communication with the screens, allowing an administrator to obtain management information from the system including length of display use and tuning configuration as well as send information to each individual screen.

DS Vision 3000 features a unique centralized management GUI for creating and specifying screen groups, and remotely turning on/off the audio, video and serial signals for screens without serial port connectivity.

The management interface also supports the configuration and control of audio via separate speakers at the display pod.

The hand-held video tuning unit allows local setup screens to be set up quickly and efficiently.

DS Vision 3000 system is available with open protocol, making it deployable with any content management software.

The bidirectional serial capability enables the network administrator to query an individual screen’s event log. Being able to ensure when and where individual screens are working is an important precursor to measuring the quality of advertising effectiveness.

In addition, the bi-directional serial command can be used to query the remaining life left for each screen – vital information for keeping your entire network up and running
24/7/365.

The serial power command allows you to turn on and off the screens. With the switch of a button administrators can minimize unnecessary screen on-time, and extend the life of their entire digital signage installation.

• 2000 feet range
• Supports HD resolutions
• Stereo-audio
• Remote screen query
• Group screen on/off command
• Palm-held video tuning unit
• CATx cable flexibility
• DDC support
• Out-of-band operation
• VESA standard mounting
• 3 year warranty

Resolution: Up to 1920x1440 @ 60Hz (depending on the cable length)

Input/Output Video Signals: Analog signal red, green, blue 0.7v p-p 75 Ohm

Sync: TTL compatible

Horizontal/Vertical Sync: Positive/Negative

System Cable: CATx UTP/ FTP cable 2x4x24 AWG Solid Wire

Maximum Distance: 2000 feet (using Line Splitter Long & Receiver Long)

Skew Compensation: Up to 63 n sec

DDC: Complies with VESA DDC-2 specification

RS-232 Connection: Full serial = RXD, TXD, DTR, DSR, RTS, CTS

Serial baud rate: 57,000

Audio: Stereo

Operating Temperature: 5°C to 40°C / 41°F to 104°F

Storage Temperature: -40°C to 70°C / -104°F to 158°F

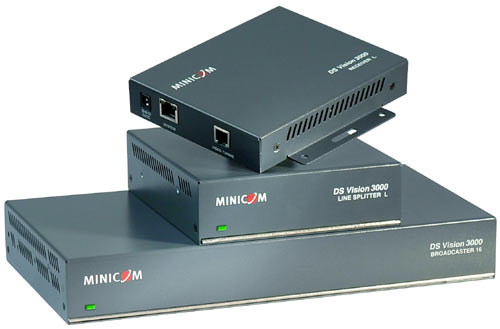

	Broadcaster 1/8/16	Line Splitter/ Line Splitter Long	Receiver/ Receiver Long	Video Tuning Unit
Cables and Connectors	VGA In: HDD15 Male VGA Local: HDD15 Female Stereo audio In/Out: Jack PL 3.5mm Serial In: DB9 Female Serial Local: DB9 Male System Out: RJ45 Control: RJ11 Power LED: Green (at the front)	System In: RJ45 System Out: RJ45 Control: RJ11 Power LED: Green (at the front)	System In: RJ45 Screen: HDD15 Female Audio Out: 3 Jack, L, R, L&R Serial Out: DB9 Male Tuning: Potentiometer / RJ11 Power LED: Green (on RJ45)	To Receiver: RJ11 Tuning: 3 button
Dimensions	292.5x153.6x41.5mm 11.5x6.0x1.6 (in)	138x153.7x41.5mm 5.4x6.0x1.6 (in)	147x145x26mm 5.8x5.7x1 (in) (including mounting)	93.7x62.1x28mm 3.7x2.4x1.1 (in)
Power	External Adaptor 5VDC 2A	External Adaptor 5VDC 2A	External Adaptor 5VDC 1A	Powered from the receiver
