Wallit BoxTilt
Features

Wallit BoxTilt• Keyed front lock on the tilt-out panel for security

• Tilt-out panel opens to operational position (15°) and service position (90°)

• Tilt-out panel features grip hand-holes for tilt option

• Two (2) rack-mount brackets with #10-32 tapped EIA mounting holes, supporting 3U rack space (5¼")

• Rack-mount brackets positioned on a track for adjustable depth

• 19½" maximum equipment depth

• 3U (5¼") mounting space for front-mounting equipment

• 1 spare rack-mount U for power strip on the rack's bottom rear panel

• Perforation pattern for equipment ventilation at top and bottom of the rack

• Provisions for mounting two (2) Decora plug-in plates at the top-front of the rack

• Provisions for mounting two (2) junction boxes on the rack's top

• Round conduit knock-outs (in various diameters) for cable-access on unit's top, bottom and back

• Three (3) square openings on back panel for access to cable-feed from the wall

• Depth-adjustable rack face

• Integrated grounding anchor

• Twelve (12) 16" spaced wall-mount holes

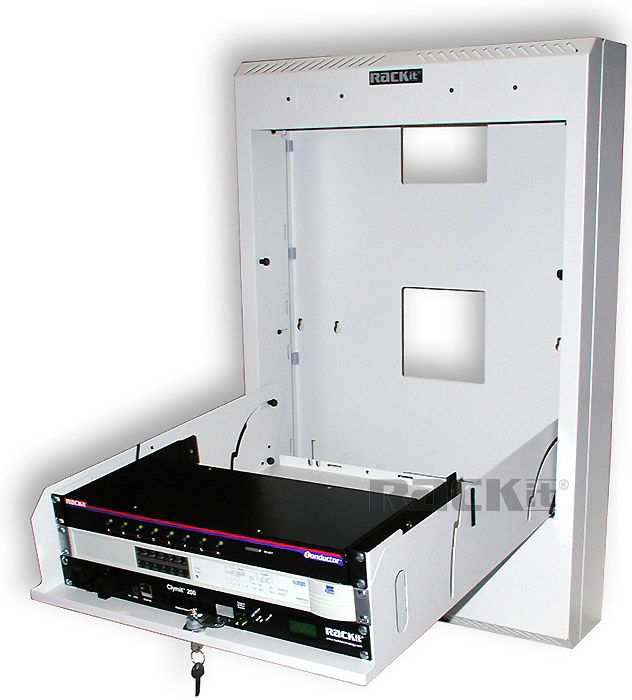

Wallit BoxTilt shown with tilt-out section open at service position (90°)


Specifications

Wallit BoxTiltTilt-Out Panel Positions

  • Closed (and lockable)
  • Open at 15° in operation position
  • Open at 90° in-service position



Rack-Mounting

  • 3U (5¼")
  • One spare 1U fold-out mounting tab on bottom-rear panel
  • Support for 2-post (front-mounting) 19" EIA rack-mount equipment
  • #10-32 tapped EIA mounting holes
  • 19½" maximum equipment depth
  • 4.9" adjustable depth for mounting rails
  • 75 lbs. weight capacity



Cable Management

  • Twelve (12) cable management conduit knock-outs diameters: ½", ¾", 1" and 1½" (2 each at top, bottom and bottom-rear panel, on both sides of the rack)
  • Three (3) 6x6" square openings on back panel for access to cable-feed from the wall



Mechanical

  • Rack dimensions: 23"W x 34½"H x 6"D
  • Tilt-out panel dimensions: 20.4"W x 21.88"H
  • Rack-face adjustability: 1¼"
  • Weight: 39 lbs.



Construction

  • Single-formed body construction
  • 14 Gauge equipment mounting rail brackets (1 pair)
  • 16 Gauge main wall mounting body
  • 16 Gauge bolt-on front face
  • 16 Gauge locking tilting front panel



Finish

  • IBM-white semi-gloss powder-coat finish



Shipping

  • UPS
