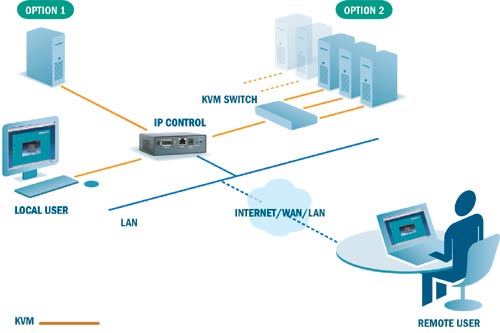

Designed to preserve your existing KVM investment through third party KVM support, IP Control is compatible with your installed KVM base, making it the perfect add-on device.

You can attach the palm-size IP Control to almost any KVM switch or server – IP Control comes with configuration definitions for most 3rd party KVM switches in the marketplace.

* IP Control is a centrally-managed KVM over IP.

IP Control provides superior video quality, mouse control, and BIOS level access over LAN, WAN and Internet. This enables a remote user's experience to look and feel local even though it's over an Internet TCP/IP connection.

IP Control allows controlling KVM and Serial devices remotely and safely through a single interface.  The built-in Serial port enables remote Serial control of power switches, routers, headless servers, and power management devices with secure, 128-bit SSL encrypted access.

* IP Control is a centrally-managed KVM over IP.

IP Control enables control and maintenance of remote digital signage players from a central control room.

IP Control provides command – in real time, and with virtually no extra cost – of content running on any number of video servers and enables troubleshooting even when the operating system is down.

* IP Control is a centrally-managed KVM over IP.

• BIOS level access of computers and servers from any location

• Proprietary video compression algorithms for near-local video performance and mouse synchronization

• Configuration definitions for most KVM switches

• Secure, 128-bit SSL data encryption

• Remote serial control of power switches, routers and other devices

* IP Control is a centrally-managed KVM over IP.

Operating Systems

• Host Computer: Dos, Windows, Novell, Linux, SUN Solaris for PC
• Client Computer: Windows 2000 computer with IE 6.0 or higher and ActiveX

Resolution

• Host Computer: Up to 1600 x 1200 @ 85Hz
• Client Computer: Recommended resolution should be higher than resolution on local computer

Video and Mouse Synchronization

• Both auto and manual modes

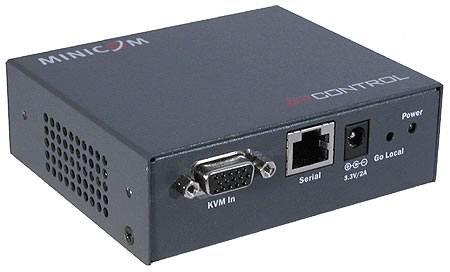

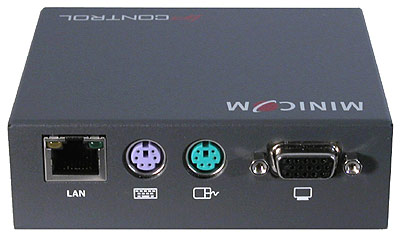

Connections

• Ethernet - RJ45 - 10/100 Mbit/sec autosensing
• Serial - RJ45
• Local KVM connection - Screen HDD15, Keyboard/Mouse - MiniDIN6
• Computer/KVM Switch connection - Screen HDD15, Keyboard/Mouse - MiniDin6 3 in 1 Cable 1.8m (supplied with system)

Weight

• 0.2kg / 0.45 lbs.

Dimensions

• 1.1H x 3.1W x 3.9D inches

Power supply

• External power adapter 3.3VDC 2A

Operating Temperature

• 0°C to 40°C
• 32°F to 104°F
