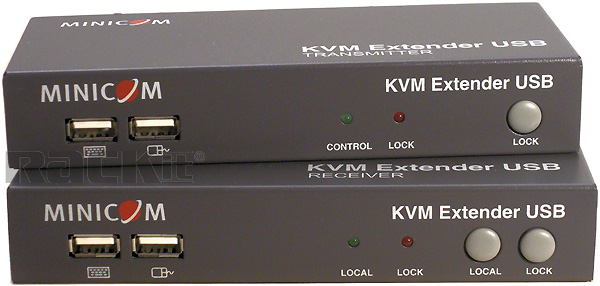

KVM Extender USB is an excellent solution for accessing computers centralized in one secure, environmentally controlled location.

Clean rooms and kiosks, for example, need a KVM workstation that is physically removed from the computer or KVM switch. Users in a professional setting benefit from being able to work at their desks, without having to get up and go to the computer or KVM switch they want to access.

In addition to the convenience of the KVM USB Extender, businesses benefit from saving space and money by eliminating the need for a dedicated KVM workstation. This is an ideal solution for SOHO (Small Office/Home Offi ce) environments, where for example an executive and secretary can both work on the same computer.

The KVM Extender USB makes business sense whenever there is a benefit to having a KVM workstation in a physically separate place from a computer or KVM switch. Some examples include:

• Access to computers or KVM switches centralized in one secure, environmentally controlled location, like clean rooms and kiosks

• Users who want to access a computer or KVM switch at a workstation, without having to get up and go to a server room

• A user who wants to access and control two computers, one local and one at an extended location (integrated local port)

• Two users working on two computers at the same time, with the user at the extended location (receiver) able to control and access both computers (receiver 2 port KVM switch)

• SOHO (Small Office/Home Office) environments, such as an executive and secretary, where users at two workstations control one computer

Security

KVM Extender USB offers a unique security feature called Exclusive Mode, where either user (at the Transmitter or Receiver location) can prevent the other user from accessing the computer or KVM switch. This capability means that the KVM Extender USB has the flexibility of a two-user option without any concerns about unauthorized access or security issues.

• Compatible with any KVM switch/computer
• Extends console 150m/500ft from server room or rack
• Pure hardware solution – no software/network conflicts
• Integrated local port
• Receiver 2 port KVM switch
• Pure hardware solution - no software/network conflicts
• Supports high-resolution video - up to 1600 x 1200 @ 75 Hz
• All cables included - off-the-shelf retail package, easy to maintain
• Uses standard CAT-5 cable – low cost, easy installation, better cable management
• Simple to install and operate
• No external power needed at transmitter end
• Supports all major operating systems
• 3 year warranty

Operations

• CAT5 FTP cable: 2x4x24 AWG Solid Wire
• Maximum Distance: 150m/500ft
• Keyboard & Mouse Support: USB keyboard and mouse
• Operating Systems: Windows and Linux
• Management: Push button or external control unit
• Screen resolution: Up to 1600 X 1200 @ 75Hz (depends on cable length)

Cables & Connectors - Transmitter

• HDD15F (VGA+USB cable) - for computer or KVM switch
• HDD15 - for monitor
• USB x 2: Console KB/M
• RJ45 - System
• RJ11 - External control unit

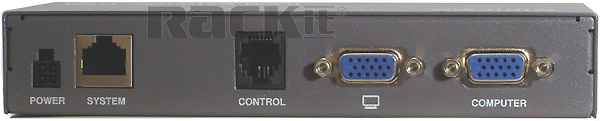

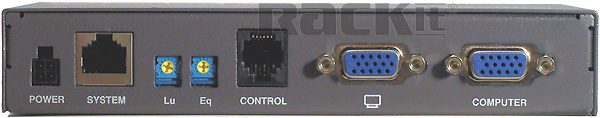

Cables & Connectors - Receiver

• HDD15F (VGA+USB cable) - for optional local computer
• HDD15 - monitor
• USB x 2: Console KB/M
• RJ45 - System
• RJ11 - External control unit

Power

• Transmitter - From computer or external power adapter 12VDC 1A
• Receiver - External power adapter 12VDC 1A

Environment

• Operating Temperature: 0° C to 40° C/32° F to 104° F
• Storage Temperature: -40° C to 70° C/-40° F to 158° F

Dimensions

• Transmitter - 85 x 113 x 25mm / 3.3" x 4.4" x 0.98"
• Receiver - 85 x 49 x 25mm / 3.3" x 4.4" x 0.98"
