  3U tilt-out wall-mount box
With its three-position tilt-out capability, Wallit™ BoxTilt allows for easy operation and servicing of equipment in a space-saving (only 6-inches deep) wall-mount secured enclosure.
Ideal for remote-office branch-office (ROBO) applications where a few pieces of equipment need to be secured and mounted out of the way, Wallit™ BoxTilt provides 3U rack-mounting space with easy installation, easy access and easy maintenance.
Wallit™ BoxTilt features a key-locked front door that tilts-open 15-degrees for easy equipment access. For equipment installation and maintenance, Wallit™ BoxTilt's front door tilts-open 90-degrees, allowing unfettered access to equipment, cables, and power.
3U mounting rails are pre-tapped with #10-32 holes conforming to EIA rack-mount standard, while being adjustable to accommodate mounting equipment as deep as 19½".
 With knock-outs for cable-access and provisions for mounting a PDU, junction boxes and Decora plug-in plates, Wallit™ BoxTilt is suitable for mounting IT equipment as well as audio and video equipment in schools, hospitals, churches, offices, restaurants, and hotels.

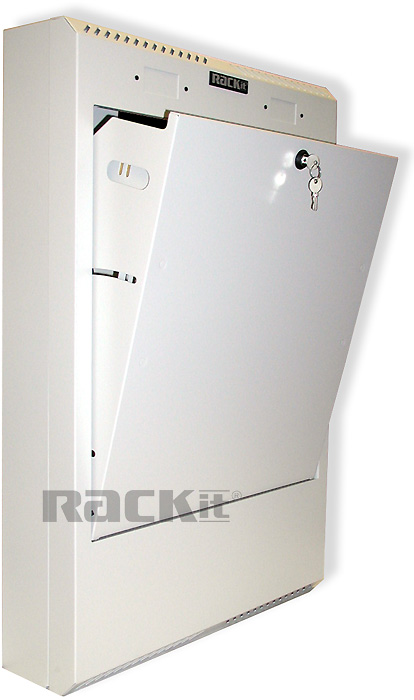

Available in a surface-mount (shown) and recess-mount design, Wallit™ BoxTilt can accommodate both remodeling and new construction applications.
