Wallit DVR
Key Features

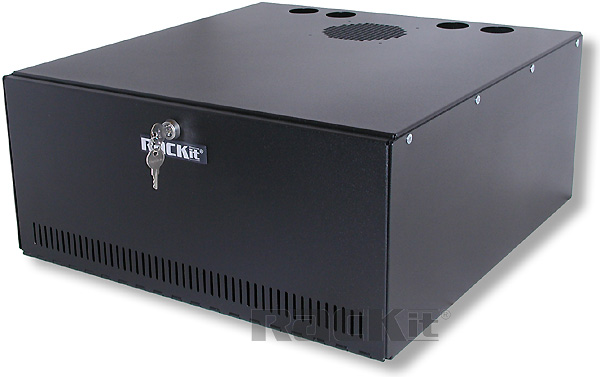

Wallit DVR 210, front viewRecessed front-door with built-in hinge prevents tampering

270 degree swing-open lockable front door

Optional quiet 53 CFM exhaust fans available

Built-in fan grates prevents tampering

Optional wall-mount bracket-kit available for easier, stronger installation

Four (4) top and four (4) rear cable-access holes [Wallit DVR 210]; Two (2) top and two (2) rear cable-access holes [Wallit DVR 150];

Heavy-duty 14 gauge steel construction with black powder-coat finish

Made in the USARackit Life-Time Warranty

Limited Lifetime Warranty


Technical Specifications

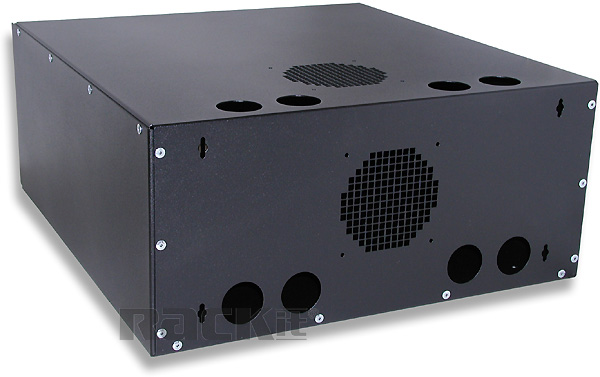

Wallit DVR 210, back viewExternal Dimensions
Wallit DVR 210; Wallit DVR 150

  • Width: 20" ; 16"
  • Height: 9" ; 5¼"
  • Depth: 21⅛" ; 15"
  • Weight: 24 lbs. ; 12.65 lbs.

Internal Dimensions
Wallit DVR 210; Wallit DVR 150

  • Width: 19¾" ; 15⅞"
  • Height: 8⅛" ; 4½"
  • Depth: 20½" ; 14½"

Cable Management
1¾"-diameter holes
Wallit DVR 210; Wallit DVR 150

  • Four ; Two (at the bottom of the back panel)
  • Four ; Two (at the back of the top panel)

Ventilation

  • Venting slots at the bottom of the front door – running across
  • 4"-diameter fan grate on top panel – 5" (on center) from the back (Wallit DVR 210 and Wallit DVR 150)
  • 4"-diameter fan grate on back panel – 4" (on center) from the top (Wallit DVR 210 only)

Wall-Mounting

  • Four (4) ⅛"-diameter mounting holes on back panel (2" from sides; 1" from top; 1½" from bottom)

Optional Wall-Mount Bracket Kit

  • Depth: 12", featuring 2 threaded holes (on each bracket) matching holes on the bottom of the lock-box
  • Height: 10" with two (2) ⅛"-diameter holes for wall-mount, 7" apart
  • Width: 2"
  • Four (4) screws (to secure Wallit DVR Lock Box to the brackets) included
  • Ship separately
