Servit AX
Sturdy, highly functional open architecture that ships compactly, installs quickly, and supports data and/or communication equipment installation

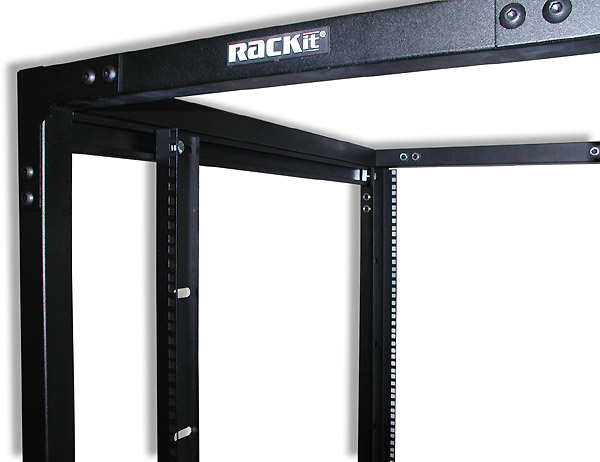

Servit AX Front Rails RecessedServit™ AX ships with leveling feet but can optionally be fitted with locking casters to support applications that require the rack to be frequently moved around.

At just under 6½ feet high, providing 41U of rack-mount space, Servit AX ships with multi-vendor-compatible mounting rails (with square holes) that infinitely adjust to the depth of your servers, still supporting a weight load of 2000 lb (1000 on casters).


Loaded with options and accessories to help customize your server installation

Servit Integrated Zero-U PDU

A wide range of available options allow customizing the rack environment, with integrated zero-U power strips, LCD consoles, keyboard and mouse accessories, environmental monitoring systems, shelves, and cable management.MVK Integrated Keyboard Shelf



Sylphit LCD Console

SDR Pull-Out Shelf


Technical specifications
  • Rack-Mounting Height: 41U
  • Rack-Mounting Width: 19" EIA rack-mount standard
  • Rack-Mounting Depth: 6 to 36 inches (field continuously adjustable)
  • Rack-Mounting Rails: 4, 2 in front, 2 in back, square holes
  • Rack-Mounting Hardware: 50 M6 screws and cage nuts
  • Height (on Leveling Feet): 76¾ inches
  • Width (External): 23½ inches
  • Depth (External): 36 inches
  • Construction: 12 gauge cold rolled steel
  • Finish: Black powder coat
  • Ships: UPS/FedEx in 1 carton

Key features

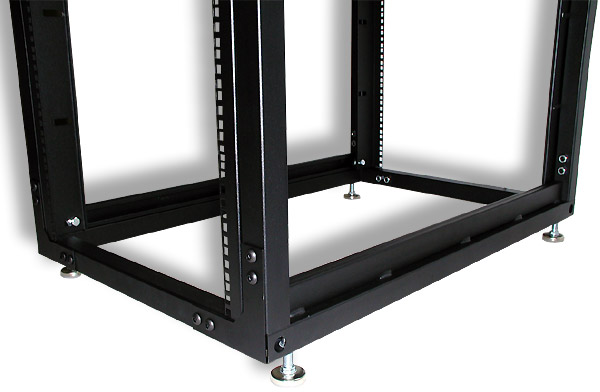

  • Servit AX on Leveling Feet4-post, front and rear mounting support
  • Continuous depth adjustment up to 36"
  • Ships standard with leveling feet
  • Available with optional locking casters
  • 41U of rack-mounting space
  • Supports universal cage-nut mounting (square holes)
  • 12 Gauge cold rolled steel construction
  • 2000 lb weight capacity (1000 lb when fitted with casters)
  • Cost effective alternative to enclosed racks
  • Ships knocked-down UPS
  • Easily and quickly assembled on-site
  • Black powder coat finish
