Sylphit-IP
Multi-Platform (USB-PS/2) Support

Sylphit-IP, 16-portsSylphit-IP supports both USB and PS/2 computer hardware-platforms.

With its built-in 8- or 16-port KVM switch, Sylphit-IP can connect to any mix of USB servers and PS/2 servers.  Use Sylphit Integrated USB KVM cables to connect to any USB server, or Sylphit Integrated PS/2 KVM cables to connect to PS/2 servers [cables are purchased separately].

A 105-key Windows keyboard along with a dedicated numeric keypad and a 2-button touchpad pointing device provide complete console control over any attached server.


At Only 1U, Sylphit KVM Drawer is the Ultimate Rack-Space-Saver

Sylphit-IPBecause Sylphit KVM drawer is rack-mounted, it fits comfortably into a standard 19-inch 4-post server rack, taking up significantly less space than a standard-sized monitor/keyboard/mouse console.

Sylphit rack-mount KVM drawer features an exceptionally sturdy, industrial strength nickel-coated 1U rack-mount self-locking drawer, designed to withstand the most demanding industrial hazards.

Being multi-rack compatible, Sylphit KVM drawer can be adjusted to fit in deep rack configurations, with adjustable rear-mount brackets.

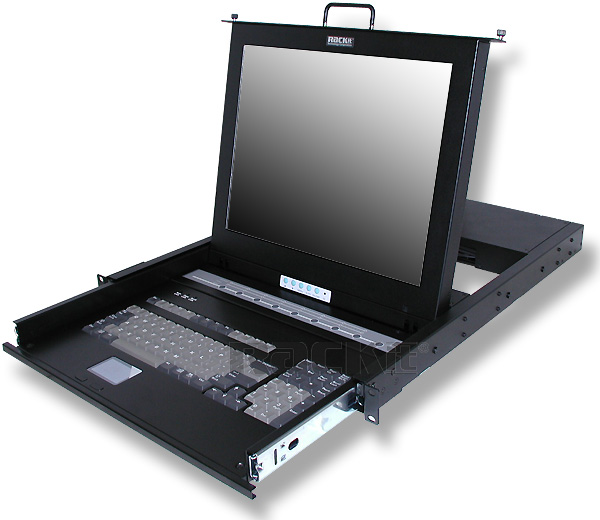

The keyboard, monitor, touchpad and KVM-switch controls can be pulled out from the main rack body by means of a sliding drawer, tilted-open in a laptop-style and used on the spot, without protruding much into the aisle space in front of the rack.

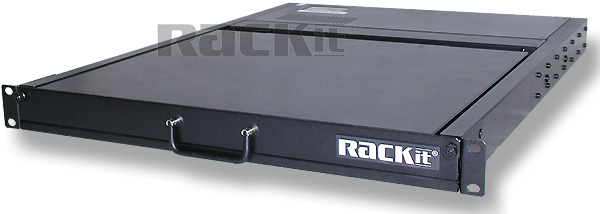

For security, the unit has built-in thumb-screws rivets to secure the unit in its closed position and prevent it from sliding out. When the unit is pulled-out, an automatic locking mechanism locks the drawer in its fully-extended position, preventing any inadvertent movement.


Crisp Video with Slick, Large, High Resolution Flat Panel Displays

Sylphit-MP MSK-817

Sylphit KVM drawer's monitor is a state-of-the-art LCD device. Its active matrix screen is as vivid as a traditional desktop computer monitor or television screen.

Sylphit KVM drawer's flat-panel display is made with thin film transistors which are resistant to electro-magnetism, and is protected with anti-glare tempered glass.

Sylphit KVM drawer's flat-panel displays are available in either 19-inch or 17-inch models, featuring a large viewing angle with high-rate brightness, supporting resolutions of 1280 x 1024.


Key Features



  • Sylphi-IPManage servers around the world
  • Remote KVM (keyboard, video, and mouse) access over IP
  • Full control under any OS, in BIOS level, during boot, or at Blue Screens
  • No additional software necessary on client console side
  • Remote mass storage control and redirection
  • Remote control over Java-enabled Browsers
  • SSL Secure access through certificate authentication and data encryption
  • SSL 256-bit encryption of all transmitted data
  • RSA 1024-bit encryption
  • Auto-optimize the frame rate and video quality according to the bandwidth availability
  • Automatically senses video resolution for best possible screen capture
  • High-performance mouse tracking and synchronization
  • Integrated 8-port USB-PS/2 KVM switch utilizing all-in-one HD-15 (female) connectors to interface with controlled computers through all-in-one USB or PS/2 cables
  • Multi-Platform support for any mix of USB and PS/2 servers
  • 105-key full-featured Windows keyboard, with a dedicated numeric keypad and 2-button integrated touch-pad pointing device supporting Windows functionality
  • Support for a 2nd (external) KVM console (VGA monitor and USB keyboard/mouse)
  • Cascading port supports the connection of 7 more levels of KVM switches, for port expansion to control up to 128 servers from one console
  • On-screen-display (OSD) that allows assigning names to the attached servers, searching and selecting them by name; OSD also provides search-by-name capability
  • Alternate server selection via channel push-buttons, or hot-key keyboard combination
  • Auto-scan mode for monitoring servers
  • Support for eight-character user-password protection
  • High-grade integrated (all-in-one) USB and PS/2 KVM cables (purchased separately)
  • Firmware update via web interface
  • Only 1U (1.75" high) of 19-inch rack-mount space
  • Laptop-style tilting display provides for short pull-out and minimal intrusion into the aisle space in front of the rack
  • Anti-glare tempered glass protects the flat-panel display, adding enhanced visibility
  • High-brightness and high contrast-ratio active TFT LCD flat panel integrated folding display
  • 19" or 17" active TFT LCD display supporting crisp video resolution up to 1280x1024
  • Adjustable rear mounting brackets support rack-mounting onto deep racks (up to 42-inches deep)
  • Smooth-operating sliding rails that self-lock when pulled all the way out
  • Industrial-grade heavy-duty steel construction, with built-in thumb screws for securing the unit when folded and pushed all the way in
